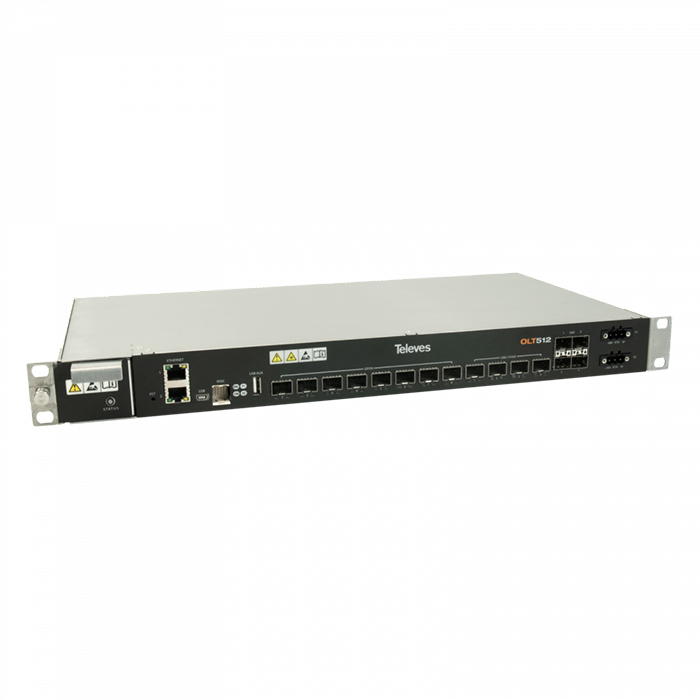

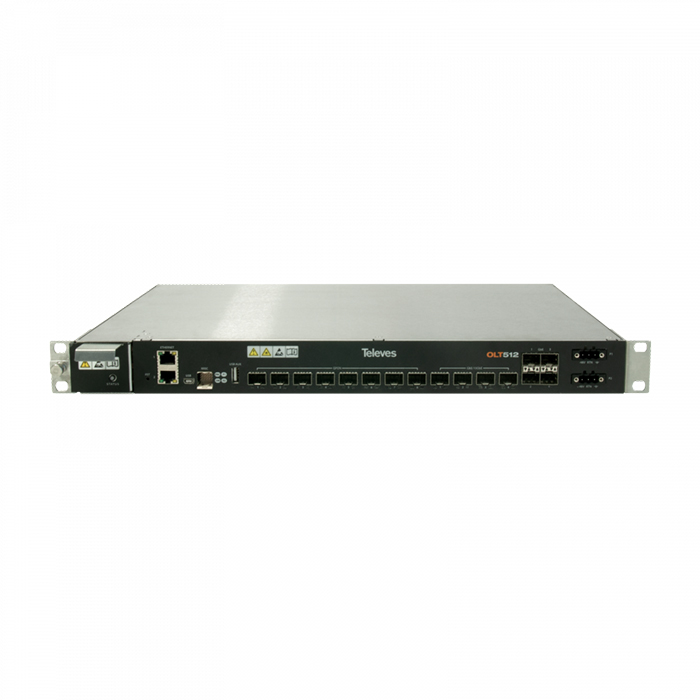

Televes OLT512
Description
Up to 512 subscribers
The Optical Line Termination (OLT) is a headend that distributes IP services over optical fiber using the GPON protocol. It is in charge of managing and adapting the services to the subscribers’ profiles and their devices, allowing the distribution and commercialization of Quad Play signals (Internet, TV, telephony, etc).
Specifically designed for the residential environment, OLT512 can serve up to 512 subscribers with total rates of 2.5 Gbps/1.24 Gbps (downstream/upstream) on each GPON port.
Equipped with the following ports: 8xPON + 4xGbE + 4x10GbE/GbE.
Highlights
- User friendly configuration via WEB
- Easy CLI (Command Line Interface) configuration option
- Remote management and monitoring
- Up to 60 km range
Main features
- 19″-rack installation, 1U height
- 8 PON ports for up to 64 users each
- Gigabit Ethernet ports for 4x1GbE Uplink traffic / 4x10GbE
- AC/DC adapter included
Specifications
Specifications
| GPON | ||
| Downstream / Upstream bit rate | Gbps | 0…95 |
| Encriptación AES | ||
| ONT per PON (512 subscribers). Max. Recommended. |
>64 | |
| Logical Range | Km (miles) | 60 (37.28) |
| Maximun Differential Distance | Km (miles) | 20 (12.42) |
| GPON Type B redundancy | ||
| L2 layer | ||
| IEEE 802.1Q VLAN tagging and Q-in-Q VLAN stacking | ||
| Load balancing | ||
| Priority management | ||
| Full wire speed GPON Performance | ||
| IPTV Features | ||
| IGMP v2 / v3 | ||
| Multicast | ||
| IPTV streams | >1024 | |
| Management | ||
| Local management by CLI and HTTP/HTTPS browser | ||
| Remote management using SSH, Telnet and SNMTP protocols | ||
| General | ||
| Temperature conditions | ºC/ºF | 5 …+45/41…113 |
| Relative Humidity Range | % | 95 |
| Power supply | VDC | -40,5 to -57,0 |
| Power consumption | W | <110 |
| Ventilation noise level | dB | <60 |
