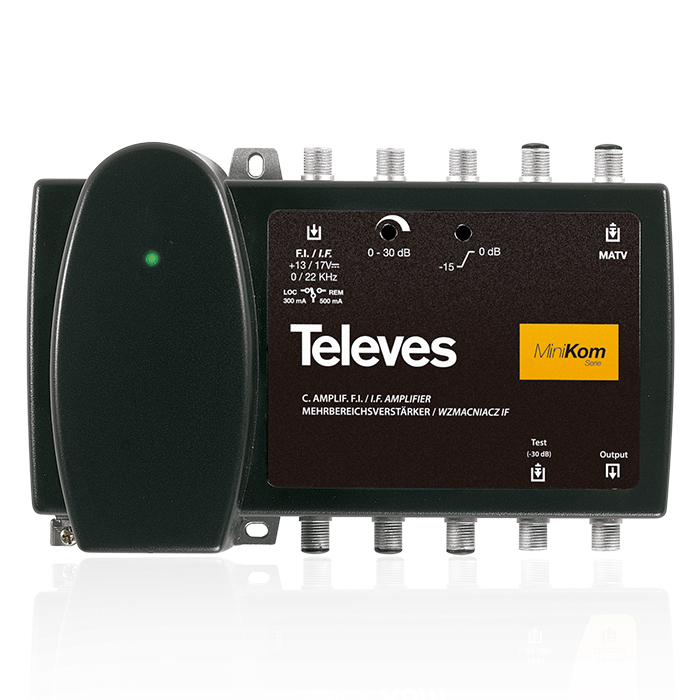

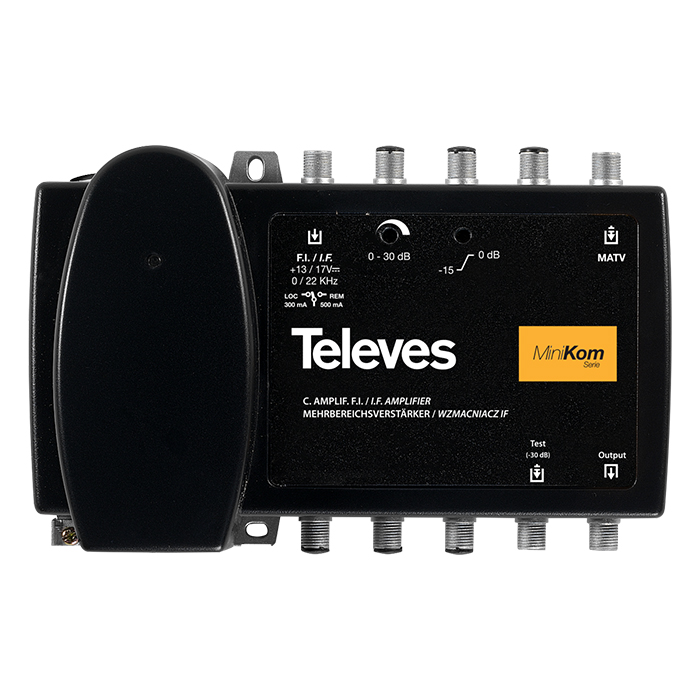

5363 – Satellite Line Amplifier

Categories: , ,
Description
Highlights
  • SAT signal amplification and passive terrestrial signal mixing with low through losses
  • PIN diode technology SAT attenuator
  • Power selection switch for LNB: local or remote. In local mode, both band and polarity can be configured using another two switches.
  • High-screening Zamak chassis



Main features
  • “F” connectors
  • SAT equalizer
  • Output signal LED indicator
  • Test output (-30 dB)
  • Can be wall-mounted using screws
Specifications

Specifications

Frequency margin MHz 950… 2150 47… 862
Gain dB 39… 48 – 1.5
Max.output level DIN VDE
0855/12
dBμV > 122
Gain adjustment range dB 0…30
Equalizer dB 0…15
Vlnb LOC mA 300
REM 500
Vpp Vpp 0,6 ± 0,1
Mains voltage (5363 / 536310) V~ 196 – 254 / 108 – 132
Total AC consumption (5363 / 536310) mA~ max. 130 / 200
W 13,5 / 14
Protection Level IP 20
Temperature operat. limits ºC -5 … +45
Documentation

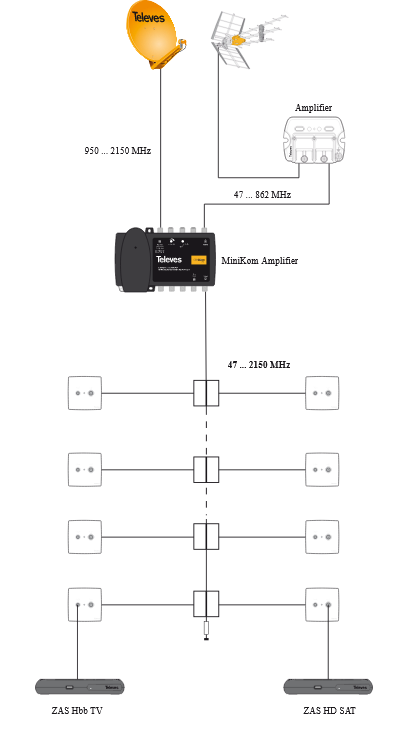

Application Example
