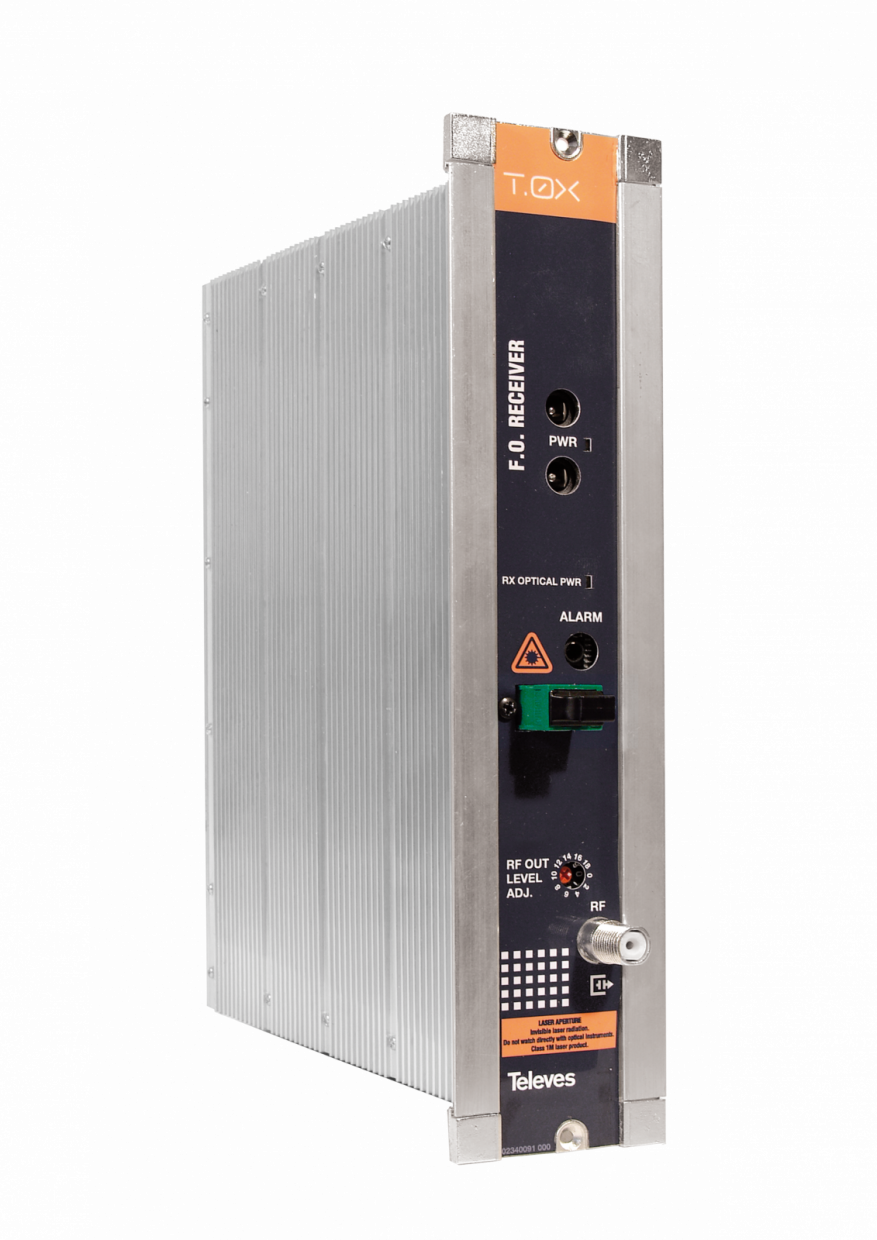

233501 – Optical Receiver

Categories: , ,
Description
Highlights
  • Wide reception optical range
  • Output level above 90 dBµV
  • Optical power LED indicators
  • The output band includes SAT, up to 2400 MHz
  • Optical power drop alarm



Main features
  • Perfect for RF overlay solutions
  • Very low equivalent noise conversion
  • Adjustable attenuator
  • Easy to install and use
  • High energy efficiency
  • SC/APC optical connectors, and F-type connectors for RF
Specifications

Specifications

RF Input/Output Frequency range Forward channel MHz 54 – 2150
Return channel —-
Maximum Output Level for
CSO and CTB >= 60dB
54 – 870 MHz dBmV 33
950-2150 MHz 30
Output level regulation margin (in 2 dB steps) dB 0 – 18
Return path maximum input level dBmV —-
Return path equivalent input noise, measured at 30 MHz and the
transmitter output connected directly to the receiver
dBm/Hz —-
Flatness dB ± 1.5
Return losses dB >= 11
Impedance Ohm 75
Optical input
(forward channel)
Optical device type InGaAs Pin Photodiode
Wavelength nm 1200 -1600
Detection bandwidth MHz 1 – 3000
Maximum Optical power received mW/dBm 4 / 6
Optical output
(return channel)
Laser type —-
Wavelength nm —-
Maximum output power mW/dBm —-
General Powering/Consumption 12 Vdc mA 300
24 Vdc 155
RF connectors Type female F
Optical connectors SC/APC
Operating temperature ºF +23 ··· +113
