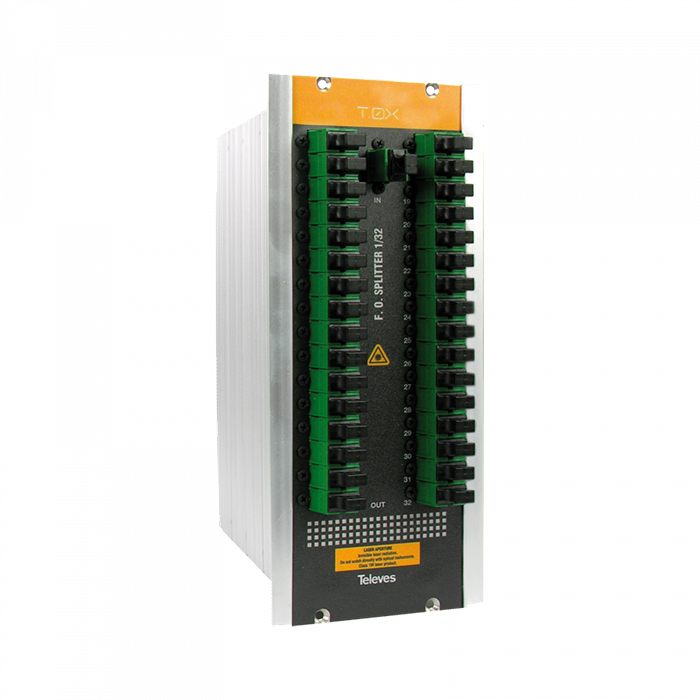

Televes Optical Splitter – 234601
Description
1260…1650 nm 17 dB
32-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.
The T.0X format frame allows rack installation for optical fibre headends.
The T.0X format frame allows rack installation for optical fibre headends.
Highlights
- High reliability
- High uniformity among outputs
- T.0X-series format
Main features
- Low insertion losses
- SC/APC connectors
Specifications
Specifications
| INPUT / OUTPUT | Wavelength | nm | 1310 – 1550 |
| No. of outputs | 32 | ||
| Optical connector | SC/APC | ||
| Insertion losses 1310/1550 nm | dB | ≤ 17,5 | |
| Return losses | dB | ≥55 | |
| Directivity | dB | ≥55 | |
| Uniformity | dB | ≤ 2 | |
| GENERAL | Ingress protection level | IP | 20 |
