2311 – Optical Node

Categories: ,

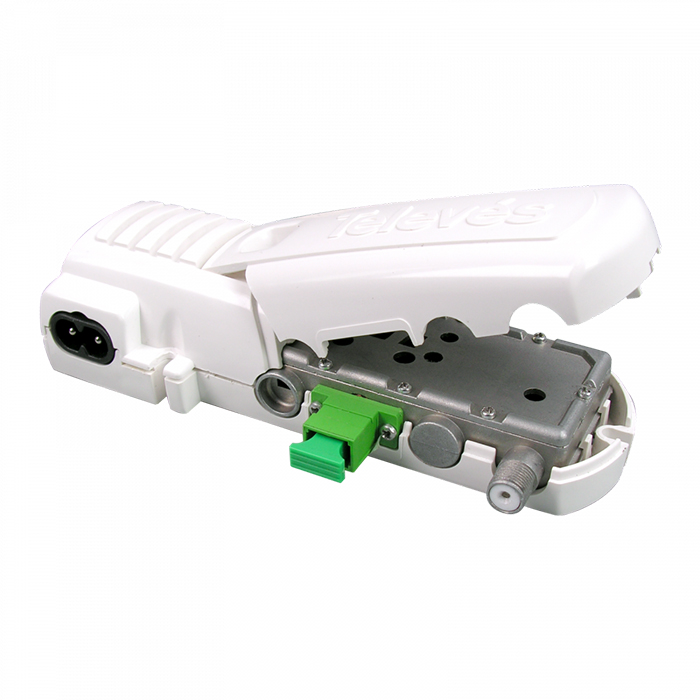

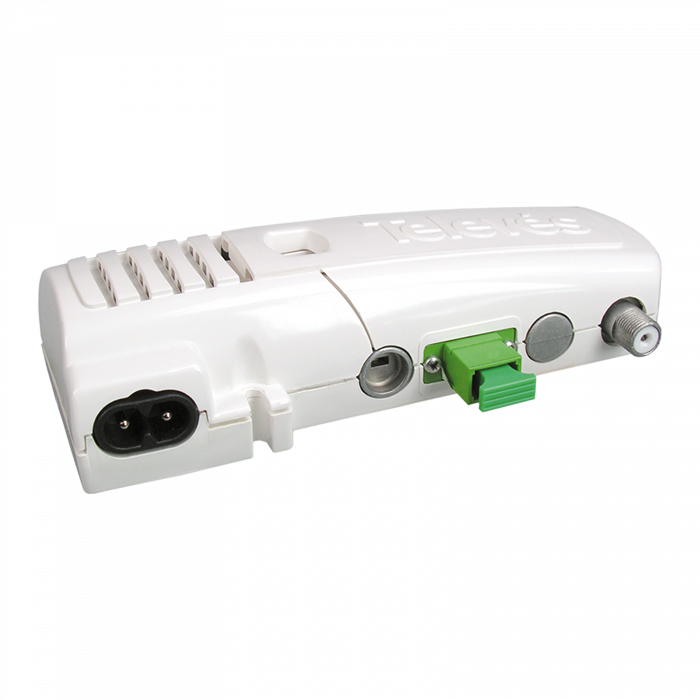

Description

1200…1600 nm
Domestic optical micro-receiver; receives one optical signal in the 1200 nm-1600 nm range and restores it on one RF output (47 MHz-2400MHz) with amplification.
Perfect for FTTH applications.



Highlights

Plug & Play: self-regulating
Low-impact visual design and limited size
Self-controlled output level with an outstanding C/N
Wide reception optical range
Integrated high-performance switched-mode power supply: Low power consumption



Main features

Provides optical input power information thanks to a LED indicator scale
SC/APC optical connectors, and F-type connectors for RF
Can be wall-mounted using screws

Specifications

Specifications

RF output
RF connectros type F
Bandwidth MHz 47- 2400
Impedance Ohm 75
Return losses dB >= 11
Gain dB autoregul.
Flatness dB ± 1,5
Typical level of self-regulated RF
output for 41 TV channels
dBμV 84
Optical input
Wavelength nm 1200-1600
Detection bandwidth MHz 1 – 3000
Max. optical power received dBm 2
Min. optical power received dBm -10
Optical return losses dB < -40
Optical input connector type SC/APC
Optical device type InGaAs pin photodiode
General
Mains voltage V~ 196-264
Max. current mA 30
Max. power W 3
Operating temperature ºC

ºF

-5 … +45

+23 … +113

Protection index IP20
Documentation

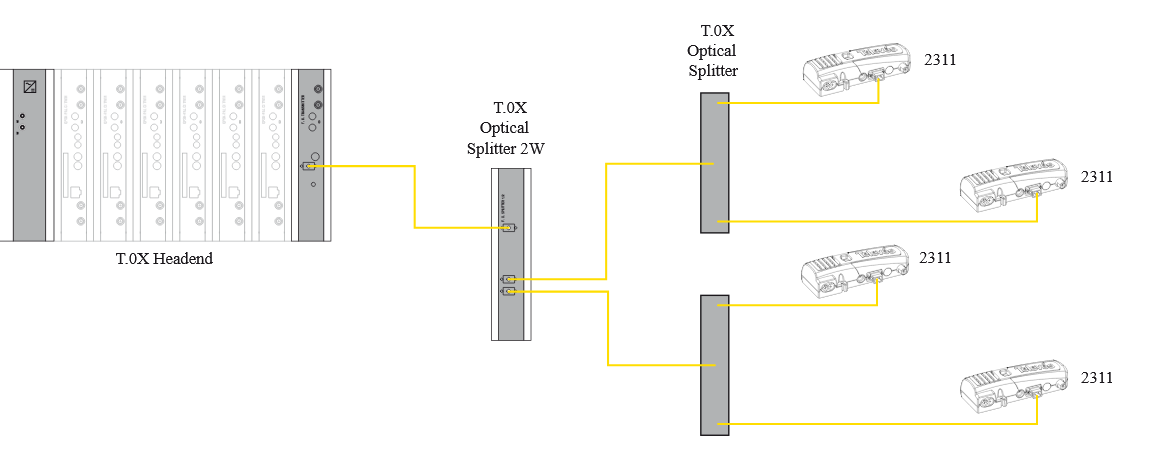

Application Example
