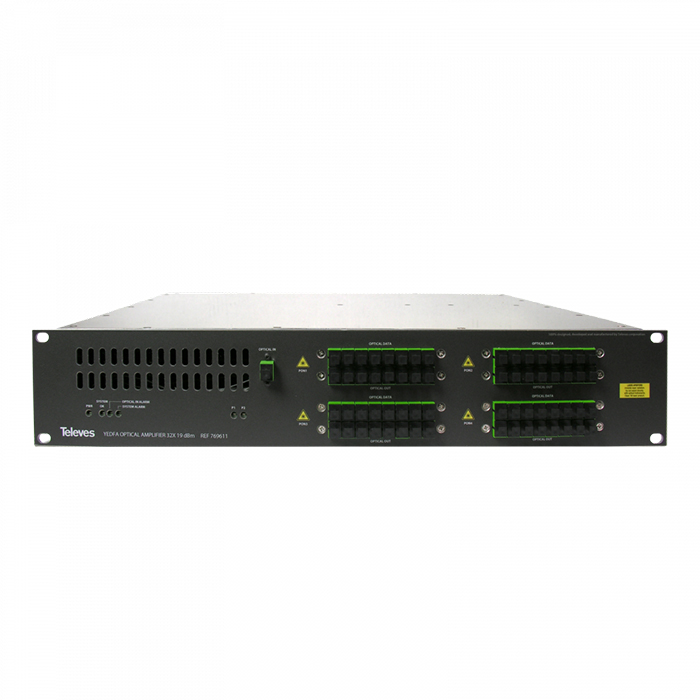

Televes YEDFA Optical Amplifier with WDM – 769611
Description
1550 nm, Po 20dBm
This device consists of an amplifier and a WDM. Designed to mix the RF Overlay service with GPON.
The optical amplifier amplifies a 1550nm optical signal, with an output power of 20dBm. Based on YEDFA (Erbium and ytterbium doped fiber) technology, it provides a high gain, a higher optical power, and a low noise factor.
Equipped with WDM, it provides 32 x 1310 nm/1490 nm-inputs that multiplex the amplified 1550 nm-signal, providing 32 x 1310 nm /1490 nm /1550 nm-outputs to be used in a GPON headend (usually OLT).
Highlights
- 20 dBm high-optical output power amplifier
- Equipped with WDM for the multiplexing of RF Overlay with GPON signals
- -10 dBm to +10 dBm input range
- Status LED indicators
- High-efficiency power supply
- Hot swappable double power supply: subscriber service is not interrupted
Main features
- Application to include RF Overlay in GPON headends
- Suitable for long distances
- SC/APC connectors
Specifications
Specifications
| Optical | Ports number | 1 RF Overlay @ Optical IN 32 GPON @ Optical DATA 32 (GPON + RF Overlay) @ Optical OU |
|
| Operating wave length | nm | 1310 ± 20 @ Upstream 1490 ± 20 @ Downstream 1548 … 1565 @ RF Overlay |
|
| Input RF overlay | dBm | -5 … +10 | |
| Output power RF overlay | dBm | 20 @ 1550 nm | |
| Uniformity | dB | 0,5 | |
| Noise figure | dB | 5 (Pin= 0 dBm @ 1550 nm) | |
| Insertion loss (1310 & 1490nm) | dB | <1 | |
| Optical connector | type | SC/APC | |
| Return loss | dB | <40 | |
| General | Input power | V~ | 99 – 264 |
| Frequency range | Hz | 50/60 | |
| Max. input consumption | mA~ | 600 | |
| Max. input power | W | 55 | |
| Working temperature | ºC / ºF | -5 … + 45 / + 23 … + 113 | |
| Humidity | % | 10 … 95 | |
| Protection Index | IP | 20 | |
