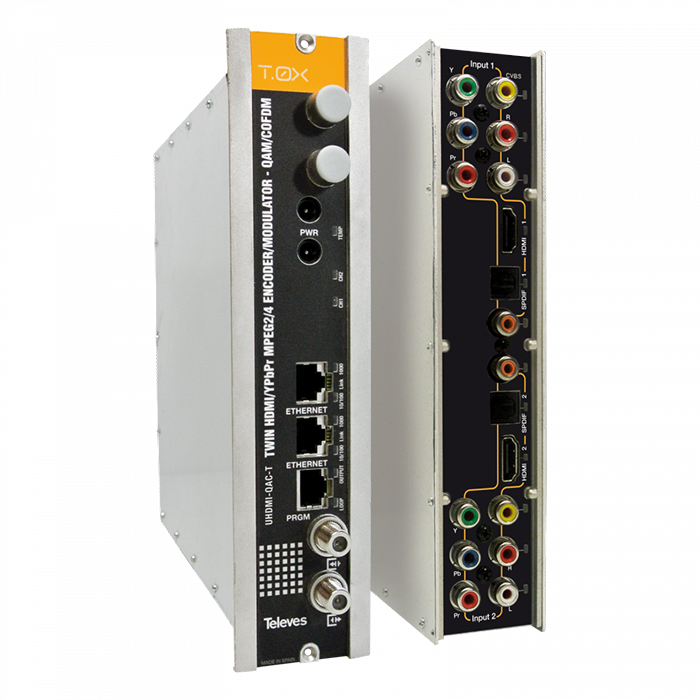

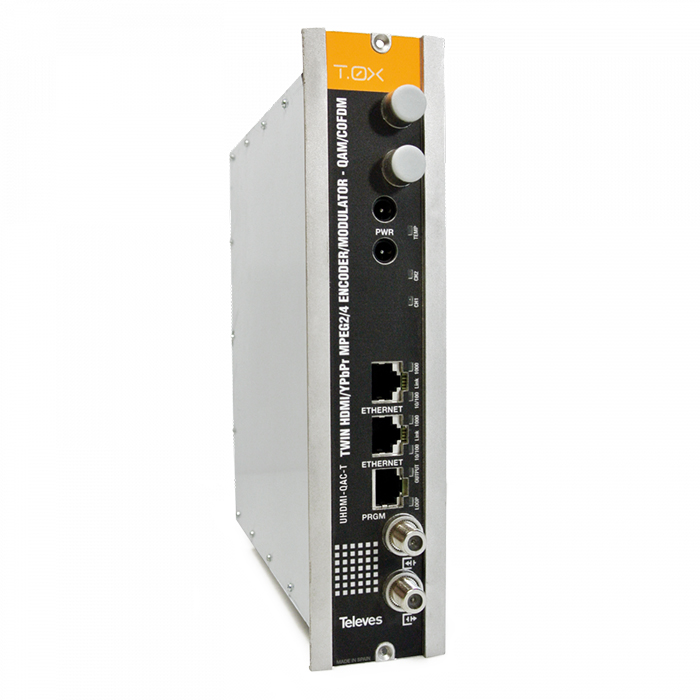

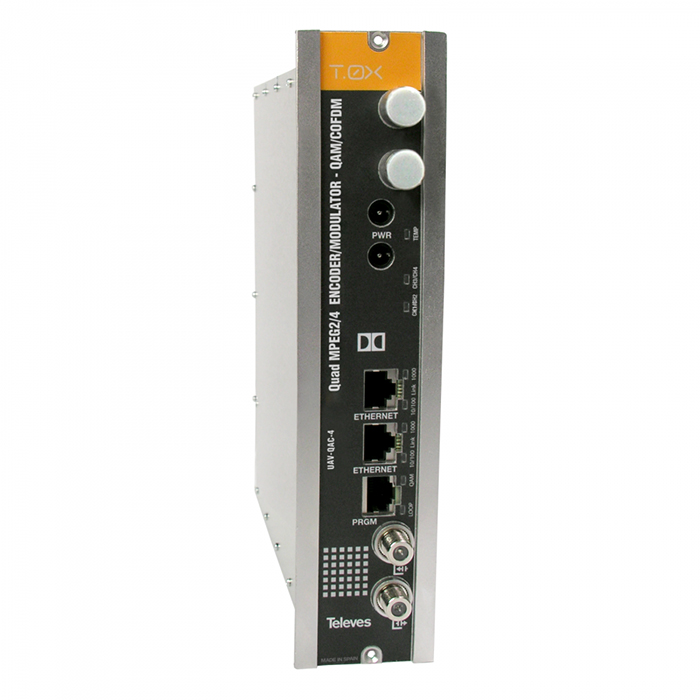

Televes Modulator/ Encoder – 563832
Description
Highlights
Perfect image and audio synchronization
Compatible with multiple formats, resolutions, and TV set sizes
Editing of all the modulation and encoding parameters
Configurable via web interface or PCT5.0 programmer
High output power without the need for extra amplification
Multi-standard output format
Excellent output quality (MER>40 dB)
Device monitoring and signal status LED diodes
Energy-efficient thanks to their low power consumption>/li>
Integrated RF combiner and Ethernet switch
Automatic and remote firmware update
Configuration via a web interface embedded in the encoder
Main features
Multiple input signal types: HDMI, CVBS, YPbPr, SPdIf audio (ref.563832), etc.
Specifications
Specifications
| References | 563822 | 563832 | |||
|---|---|---|---|---|---|
| INPUTS | |||||
| Video | 4 sets – 1x RCA for Video (CVBS) | 2 sets – 3x RCA for Video (Y, Pb, Pr) 2 sets – 1x RCA for CVBS Video |
|||
| Audio | 4 sets – 2x RCA for Analog Audio (L, R) | 2 sets – 2x RCA for Analog Audio (L, R) 2 sets – 1x RCA for Digital Audio 2 sets – 1x Toslink for Digital Audio (Optical) |
|||
| Video + Audio | – | 2 sets – 1x HDMI | |||
| VIDEO ENCODER | |||||
| Output Format | MPEG-2 / H264 | ||||
| Resolution | 480i & 576i Supports auto-scan for input resolution |
480i, 480p, 576i, 576p, 720p, 1080i & 1080p Supports auto-scan for input resolution |
|||
| Aspect Ratio | 4:3, 16:9 and pass through | ||||
| GOP | 10, 12, 15, 16, 18, 20, 24 or 30 | ||||
| AUDIO ENCODER | |||||
| Output format | MPEG1 Layer 2 | Dolby Digital AC-3 (only digital passthrough) or MPEG1 Layer2 (analog input or HDMI uncompressed PCM audio) |
|||
| Sampling rate | kHz | 48 | |||
| OUTPUT | Frequency Range | MHz | 46…862 | ||
| Max output level | dBμV/
dBmV |
+115 (+103 with loop-through) /
+ 55 (+ 43 with loop-through) |
|||
| MER | dB | >40 | |||
| Spurious | dBc | -60 | |||
| QAM | |||||
| Modulation format | 16, 32, 64, 128, 256 | ||||
| BaudRate | Mbaud | 6,9 | |||
| Roll-off | % | 15 | |||
| Code | Reed Solomon | ||||
| Spectrum Mode | Normal / Inverted | ||||
| Frequency Step | kHz | 250 | |||
| COFDM | |||||
| Modulation format | QPSK, 16QAM, 64QAM | ||||
| Guard Interval | μS | 1/4, 1/8, 1/16, 1/32 | |||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||
| Bandwidth | MHz | 6, 7, 8 | |||
| Cell_id | Editable | ||||
| Frequency Step | KHz | 125 / 166 | |||
| PSI | |||||
| Transport Stream ID | Editable | ||||
| Original Network ID | Editable | ||||
| Network ID | Editable | ||||
| LCN | Editable | ||||
| NIT | Manual / Automatic | ||||
| SDT | Manual / Automatic | ||||
| Type LCN | Generic / UK / NorDig V1 / NorDig V2 | ||||
| Network Name | Editable | ||||
| Service PID | Editable | ||||
| Service Name | Editable | ||||
| Service ID | Editable | ||||
| GENERAL | |||||
| Power supply | Vdc | 24 | |||
| Power disipation | W | < 16 | |||
| Protection index | IP | 20 | |||
