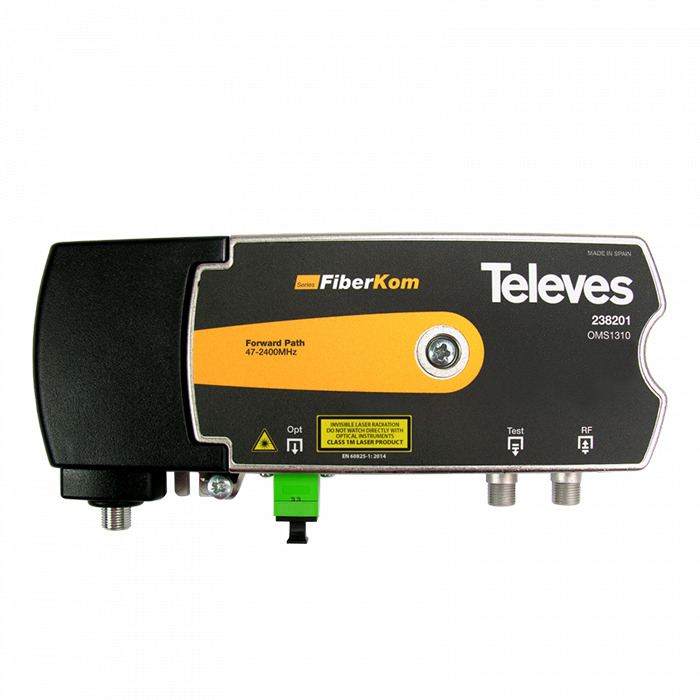

238201 – Optical Transmitter

Categories: , ,
Description

1310 nm, Po 3 dBm
Generates an optical output signal of 1310nm of wavelenght modulated by the input RF SMATV signal (47 MHz- 2400 MHz). It is possible to obtain an optimal output signal working with low input levels. The optical output power is 3 dBm.



Highlights

SMATV-compatible: up to 2400 MHz input bandwidth
“Plug & Play” installation
FiberKom design: made of Zamak, provides great robustness and shielding. The design also offers a wall assembly for separately installation.



Main features

OMI Test Point
Optical level indicator with green LED
Coaxial power supply connector, with a maximum voltage of 35V
SC/APC optical connectors, and F-type connectors for RF

Specifications

Specifications

RF Frequency range MHz 47 – 2400
Flatness 47-1200 MHz dB ±0.75
950-2400 MHz ±2.5
Input level 47-1200 MHz dBμV 79
950-2400 MHz 95
C/N dB >51
CSO dB >60
CTB dB >65
OMI Test point dBμV  64
Optical Optical connector type SP / APC
Laser type MQW – DFB
Wavelength nm 1310
Output power dBm +3
General RF connector type F-female
Power supply connector F-female
Power supply voltage V / mA 11-35 / 120-40
Operating temperature ºC -5 … +45
Index operation IP 30
Documentation

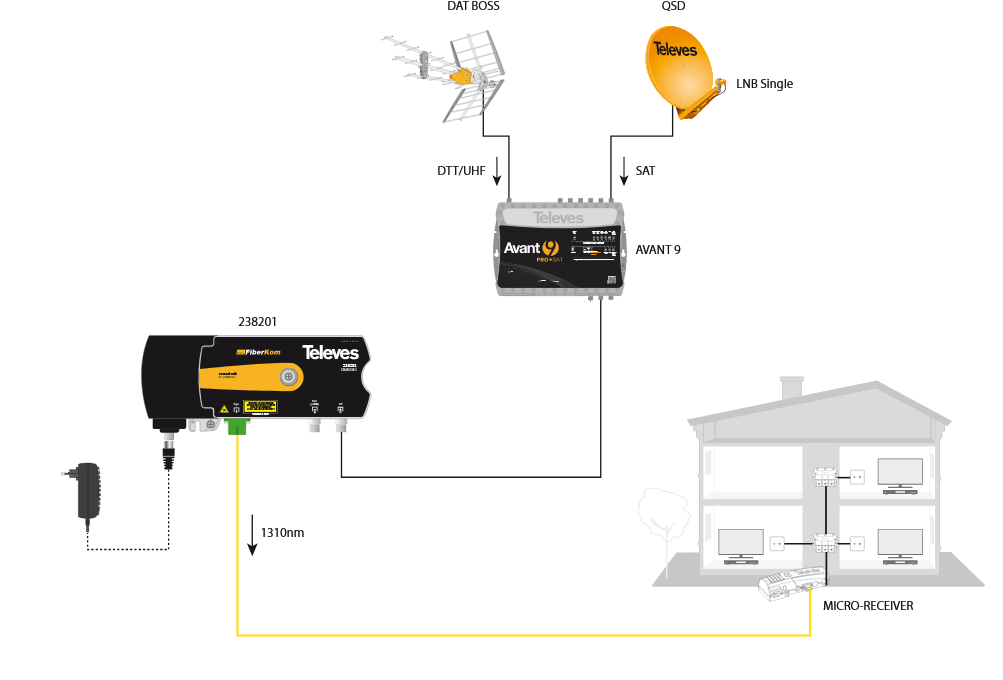

Application Example
