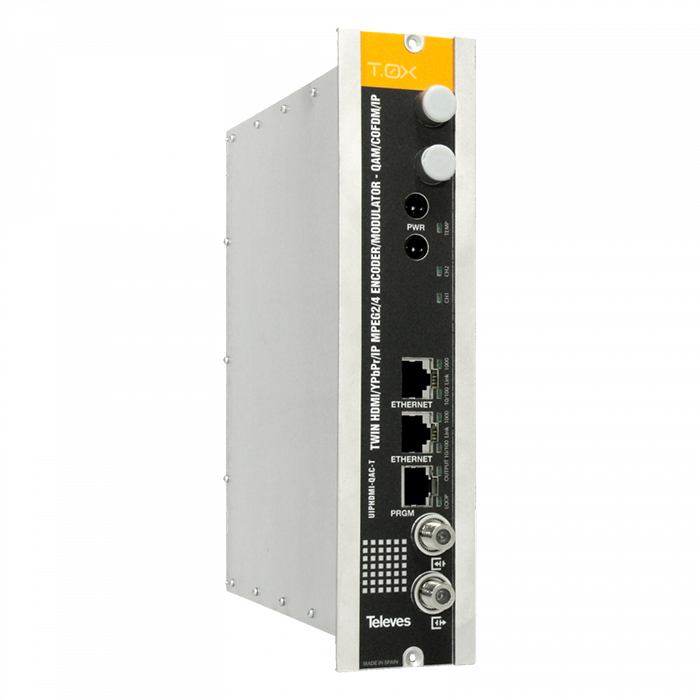

Televes Modulator/ Encoder – 563852

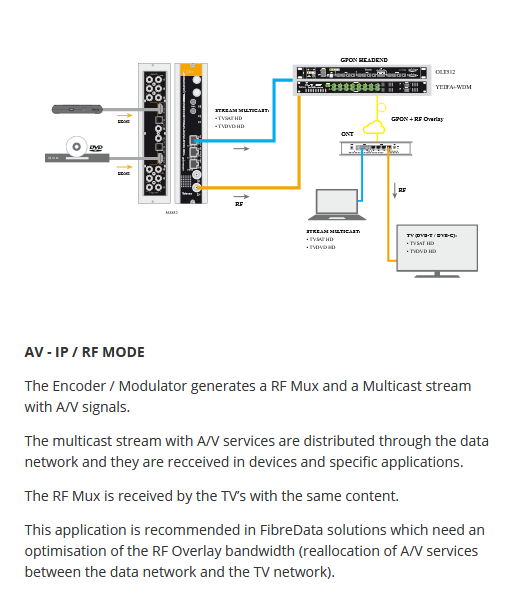

Description
Highlights
- Perfect image and audio synchronization
- Compatible with multiple formats, resolutions, and TV set sizes
- Editing of all the modulation and encoding parameters
- Configurable via web interface or PCT5.0 programmer
- High output power without the need for extra amplification
- Multi-standard output format
- Excellent output quality (MER>40 dB)
- Device monitoring and signal status LED diodes
- Energy-efficient thanks to their low power consumption>/li>
- Integrated RF combiner and Ethernet switch
- Automatic and remote firmware update
- Configuration via a web interface embedded in the encoder
Main features
- Multiple input signal types: HDMI, CVBS, YPbPr, SPdIf audio (ref.563832), etc.
- HDCP (High-bandwidth Digital Content Protection) function, which can be disabled by the owner with the content provider’s authorization
Specifications
Specifications
| INPUT | |||

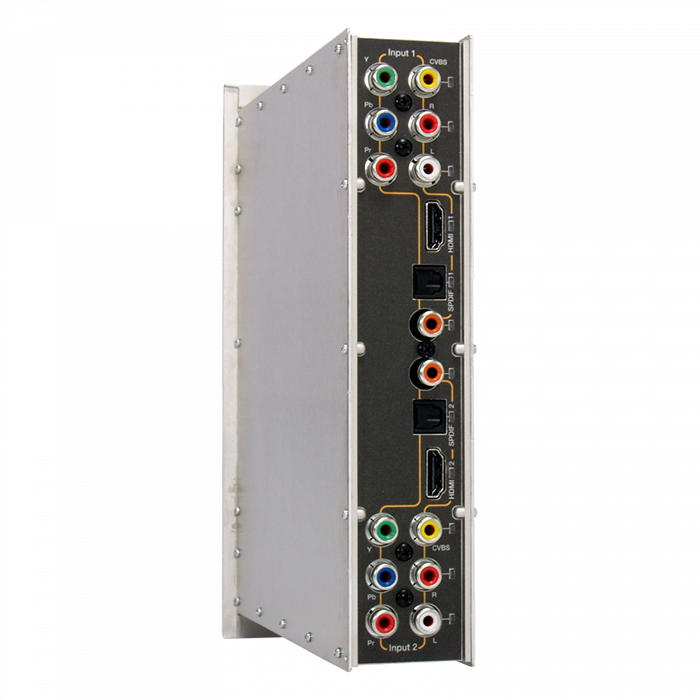

| Video | 2 sets 3 x RCA (Y, Pb, Pr) 2 sets 1 x RCA (CVBS) |
||
| Audio | 2 sets 2 x RCA (L, R) 2 sets 1 x RCA (Digital) 2 sets 1 x Toslink (Optical) |
||
| Video + Audio | 2 sets 1 x HDMI | ||
| IP Multicast | 2 ports RJ45 switch Gbe SPTS or MPTS (UDP/RTP) | ||
| VIDEO ENCODER | |||
| Output format | MPEG-2 / H264 | ||
| Resolution | 480i, 480p, 576i, 576p, 720p, 1080i & 1080p Auto-scan of input resolution (1) |
||
| Aspect ratio | 4:3, 16:9 y pass through | ||
| GOP | 10, 12, 15, 16, 18, 20, 24 ó 30 | ||
| AUDIO ENCODER | |||
| Output format | Dolby Digital AC-3 only Digital Loop) or MPEG1 Layer2 (analogue input HDMI PCM) |
||
| Sampling rate | kHz | 48 | |
| Output | |||
| Frequency bands | MHz | 46…862 | |
| Maximum output level | dBµV /
dBmV |
115/55 (103/43 with active loop-through) |
|
| MER | dB | >40 | |
| Spurious | dBc | -60 | |
| Annex A QAM | Modulation | 16, 32, 64, 128, 256 | |
| BaudRate | Mbaud | 6,9 | |
| Roll-off | % | 15 | |
| Code | Reed Solomon | ||
| Spectrum mode | Normal / Inverted | ||
| Frequency steps | kHz | 250 | |
| COFDM | Modulation | QPSK, 16QAM, 64QAM | |
| Guard interval | µS | 1/4, 1/8, 1/16, 1/32 | |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| Bandwidth | MHz | 6, 7, 8 | |
| Cell_id | Yes | ||
| Frequency steps | kHz | 125 / 166 | |
| IP | Transport Stream SP/MP | 2 SPTS IP multicast outputs (UDP o RTP) / 1 MPTS output |
|
| PSI | Transport Stream ID | Editable | |
| Original Network ID | Editable | ||
| Network ID | Editable | ||
| LCN | Editable | ||
| NIT | Editable | ||
| SDT | Editable | ||
| Tipo LCN | Generic / UK / NorDig V1 / NorDig V2 | ||
| Network Name | Editable | ||
| Service PID | Editable | ||
| Service Name | Editable | ||
| Service ID | Editable | ||
| General | |||
| Voltage | Vdc | 24 | |
| Consumption | W | <20,4 | |
| Protection index | IP | 20 | |
(1) The output resolution is the same as the input signal source.
