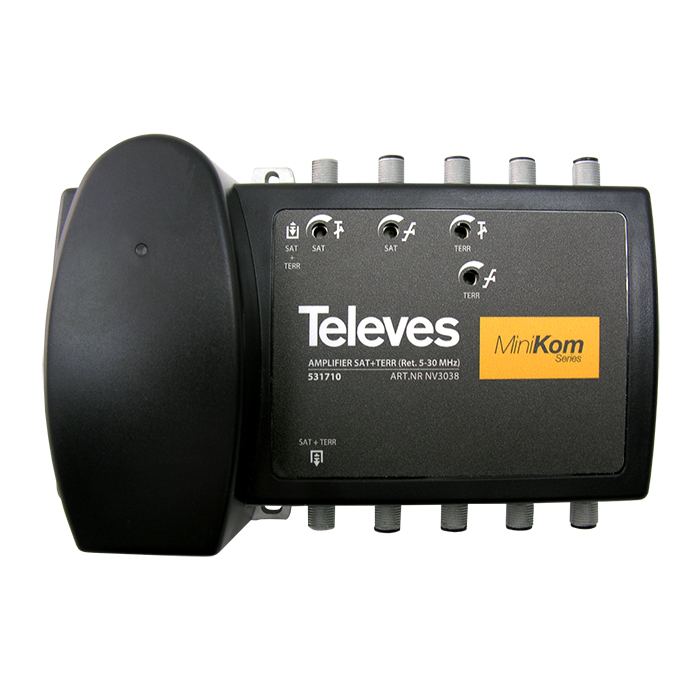

531710 – Broadband Amplifier (RF+IF)

Description

Highlights

Separate amplification enhance the output level without causing any interference among bands
SAT attenuation and equalization control on each input
MATV attenuation and equalization control.
High-screening Zamak chassis

Main features

“F” connectors
Output signal LED indicator
Can be wall-mounted using screws

Specifications

Specifications

</tr style=”border: 1px solid black”>

SAT
Frequency margin MHz 950… 2150
Gain dB 33 – 38
In-Out return losses dB 10
Max.output level IMD3 (2ch-35dB) dBμV 123
IMD2 (2ch-35dB) 119
Regulation margin dB 0 – 20
Equalization margin dB 0 – 15
Noise figure dB 10
MATV
Frequency margin MHz 47 – 862
Gain dB 35
In-Out return losses dB 10
Noise figure dB 5
Max.output level DIN45004B dBμV 120
IMD3 (2ch-60dB) 127
IMD2 (2ch-60dB)
CTB,CSO,XMOD (42ch-60dB) 104
Regulation margin dB 0 – 20
Equalization margin dB 0 – 20
Return path
Frequency margin MHz 5 – 30
Attenuation dB 5
In-Out return losses dB 12
General
Mains voltage V~ 220 – 230
Max. current mA 85
Max. power consumption W 7
Protection level IP 20
Operating temperature ºC -5 … +45
