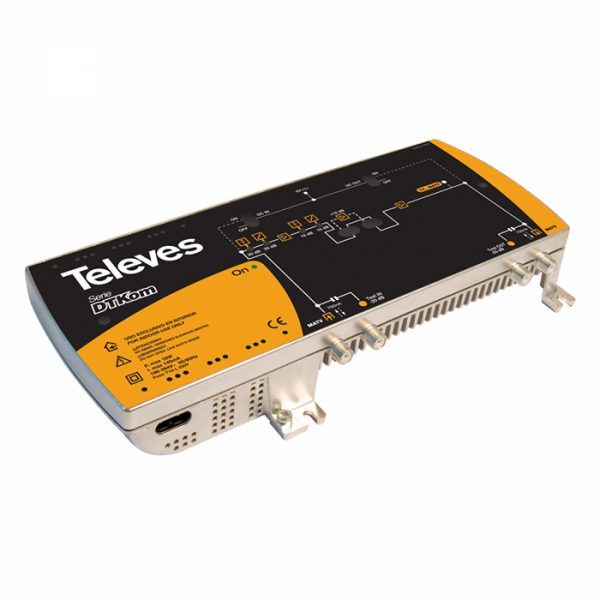

Televes RF Distribution Amplifier – 5338
Description
Highlights
- Separate amplification minimizes intermodulation between bands and provides high output levels
- Designed using Push-Pull technology, which guarantees levels in the 123 dBμV range for terrestrial signals.
- Includes a high-performance low-power consumption switch-mode power supply
- High-screening Zamak chassis The design facilitates appropriate cooling
Main features
- Pre-equalization and equalization stages
- Intuitive front cover, including adjustments and block diagram
- Can be wall-mounted using screws
Specifications
Specifications
</tr style=”border: 1px solid black”>

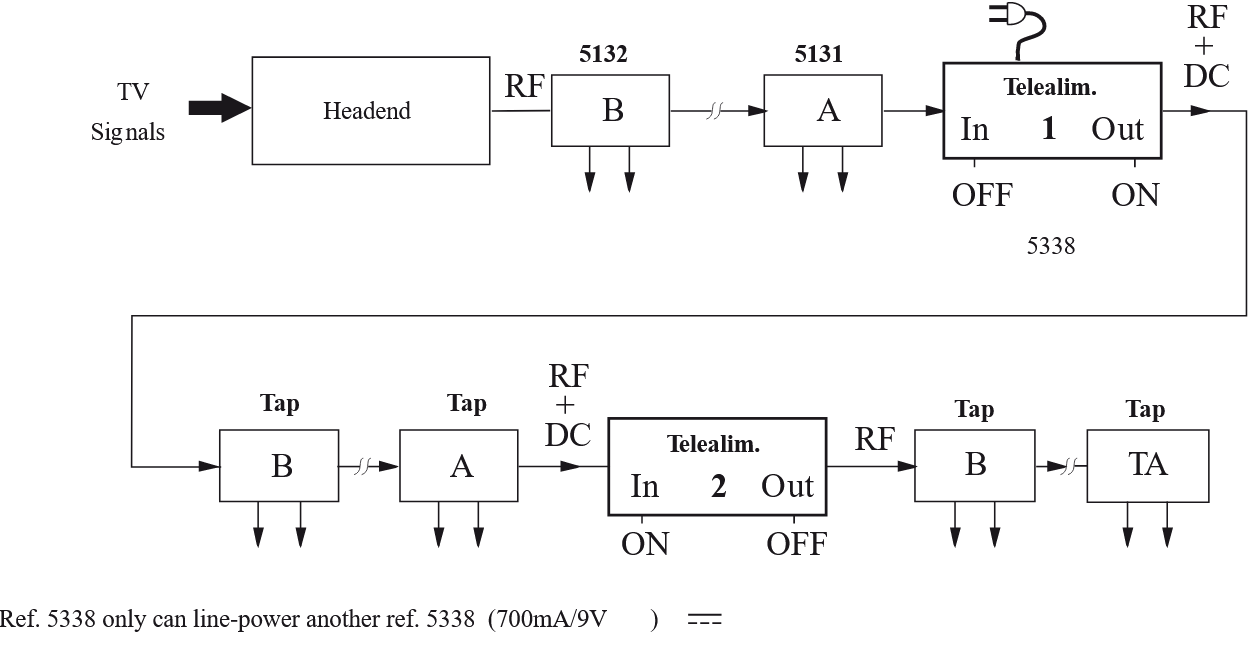

| Bands | MATV | |||
| Frequency margin | Mhz | 47 … 862 | ||
| Gain | dB | 40↔ 50 (selec.) | ||
| Max.output level | DIN 45004B | dBμV (dBmV) | 120 (60) | |
| EN 50083 (IMD3) | 2 Ch -60dB | 129 (59) | ||
| (IMD2) | 2 Ch -60dB | 112 (52) | ||
| CTB, CSO, XMOD | D42Ch -60dB | 105 (45) | ||
| Noise figure | dB | 6 | ||
| Return loss input | 10 | |||
| Return loss output | 10 | |||
| Attenuator | 0…20 | |||
| Interstage attenuator | 0 … 20 | |||
| Equalizer | 0 … 10 | |||
| Interstage equalizer | 0 … 10 | |||
| Input test MATV | – 20 | |||
| Output test MATV | – 20 | |||
| Interstage equalizer | V~ | 120 – 230 | ||
| Total AC consumption | mA~ max. | 240 | ||
| W | 16 | |||
| Max current through inputs | V | 12 | ||
| mA max. | 700 | |||
| Protection Level | IP | 20 | ||
| Temperature operat. limits | ºC
ºF |
-5…+45
14 … 113 |
||
