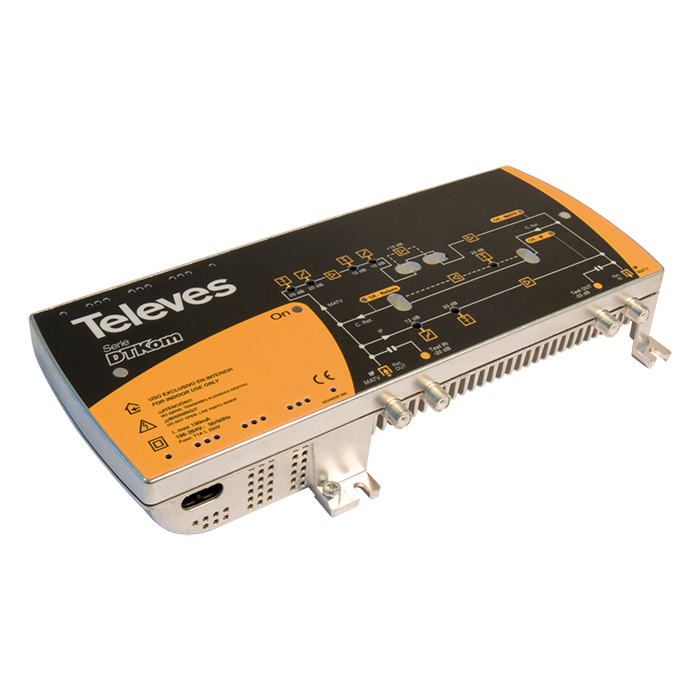

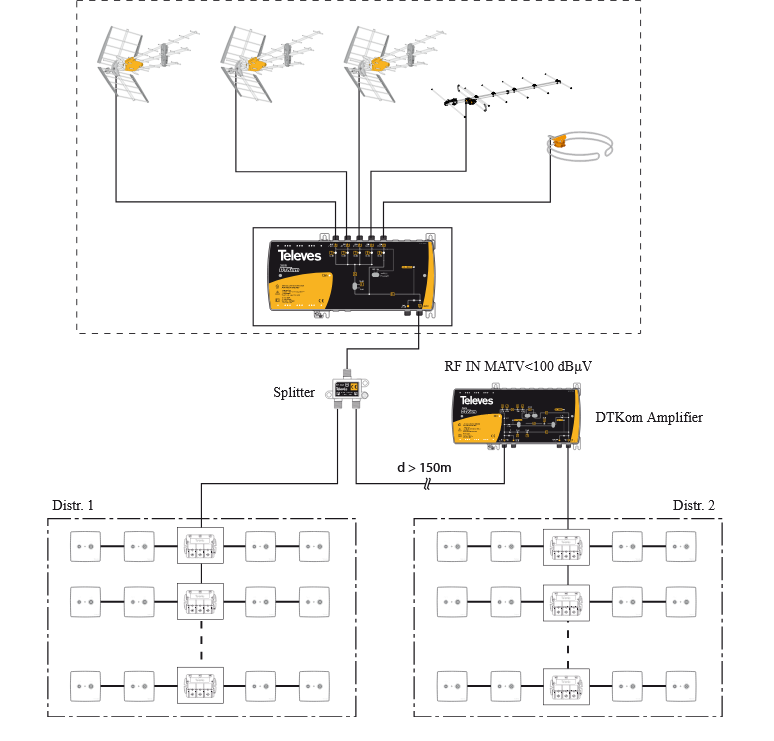

Televes Broadband Amplifier (RF+IF) – 533501
Description
Highlights
Separate amplification minimizes intermodulation between bands and provides high output levels
Designed using Push-Pull technology, which guarantees levels in the 123 dBμV range for terrestrial signals.
Includes a high-performance low-power consumption switch-mode power supply
High-screening Zamak chassis The design facilitates appropriate cooling
Main features
Pre-equalization and equalization stages
Configurable gain for terrestrial band and return channel using two switches (high/low)
Intuitive front cover, including adjustments and block diagram
Output signal LED indicator
Specifications
Specifications
| Bands | Ret. Path | MATV | IF | |||
| Frequency margin | Mhz | 5 … 65 (ref. 533501) 5 … 30 (ref.533510) |
87 … 862 (ref. 533501) 47 … 862 (ref. 533510) |
950 – 2150 | ||
| Gain | dB | -4 ↔ 28 | 38 ↔ 50 (selec.) | 42 | ||
| Max. output level | DIN 45004B | dBμV | 116 | 121 | – | |
| EN 50083 (IMD3) | 2 Ch -60dB | 113 | 118 | 124 (2Ch-35dB) | ||
| (IMD2) | 2 Ch -60dB | 106 | 112 | 115 (2Ch-35dB) | ||
| CTB, CSO, XMOD | D42Ch -60dB | – | 105 | – | ||
| Noise figure | dB | 6 | 6 | 10 | ||
| Return loss input | 10 | 10 | 10 | |||
| Return loss otutput | 10 | 10 | 10 | |||
| Attenuator | 0 – 20 | 0 – 20 | 0 – 20 | |||
| Interstage attenuator | – | 0 – 10 | – | |||
| Equalizer | – | 0 – 20 | 0 – 15 | |||
| Interstage equalizer | – | 0 – 10 | – | |||
| Input test MATV | – 20 | |||||
| Output test MATV | -20 | |||||
| Mains voltage | V~ | 120 – 230 | ||||
| Mains frequency | Hz | 50 / 60 | ||||
| Total AC consumption | mA max. | 126 | ||||
| W | 9,5 | |||||
| Protection level | IP | 20 | ||||
| Temperature operat. limits | ºC | -5 ··· +45 | ||||
FAQ
FAQ
What are the functions of the “Cable Equalizer” and the “Pre-equalizer” in a line amplifier?
The Cable Equalizer allows to match the signal levels to be amplified at the internal stage of a broadband amplifier, thus preventing intermodulation at that stage. The Pre-equalizer generates an unbalance between high-frequency and low-frequency signals to compensate for the losses in the distribution network.
