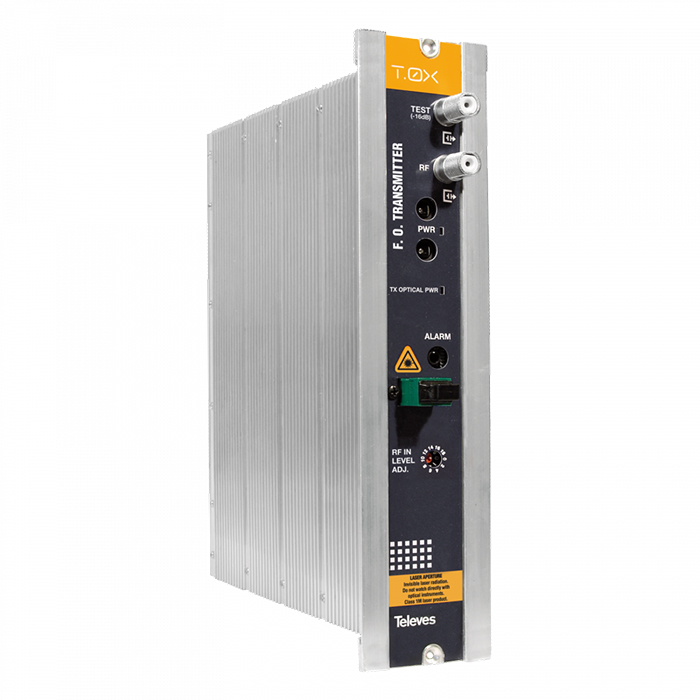

Televes Optical transmitter
Description
Highlights
SMATV-compatible: up to 2400 MHz input bandwidth
RF input level control: optimization of the optical conversion quality parameters
Optical power drop alarm
Main features
Very low equivalent noise conversion
Easy to install and use
High energy efficiency
SC/APC optical connectors, and F-type connectors for RF
Specifications
Specifications
| RF parameters | Frequency range | MHz | 47 – 2400 | |
| Flatness | 47-1200 MHz | dB | ±0.5 | |
| 950-2400 MHz | ±2 | |||
| Impedance | Ohm | 75 | ||
| Input level | RF | dBμV | 73 – 93 | |
| SAT | 63 – 83 | |||
| Manual gain adjustment | dB | 0 … 14 (2dB steps) | ||
| C/N | dB | >51 | ||
| CSO | dB | >60 | ||
| CTB | dB | >60 | ||
| Optical | Laser | type | MQW – DFB | |
| Wavelength | nm | 1310 ± 10 | ||
| Output optical power | dBm | 6 | ||
| General | RF connectors | type | “F” female | |
| Optical connector | SC/APC | |||
| Consumption | 12 Vdc | mA | 260 | |
| 24 Vdc | 155 | |||
| Operating temperature | ºC | -5 … +45 | ||
