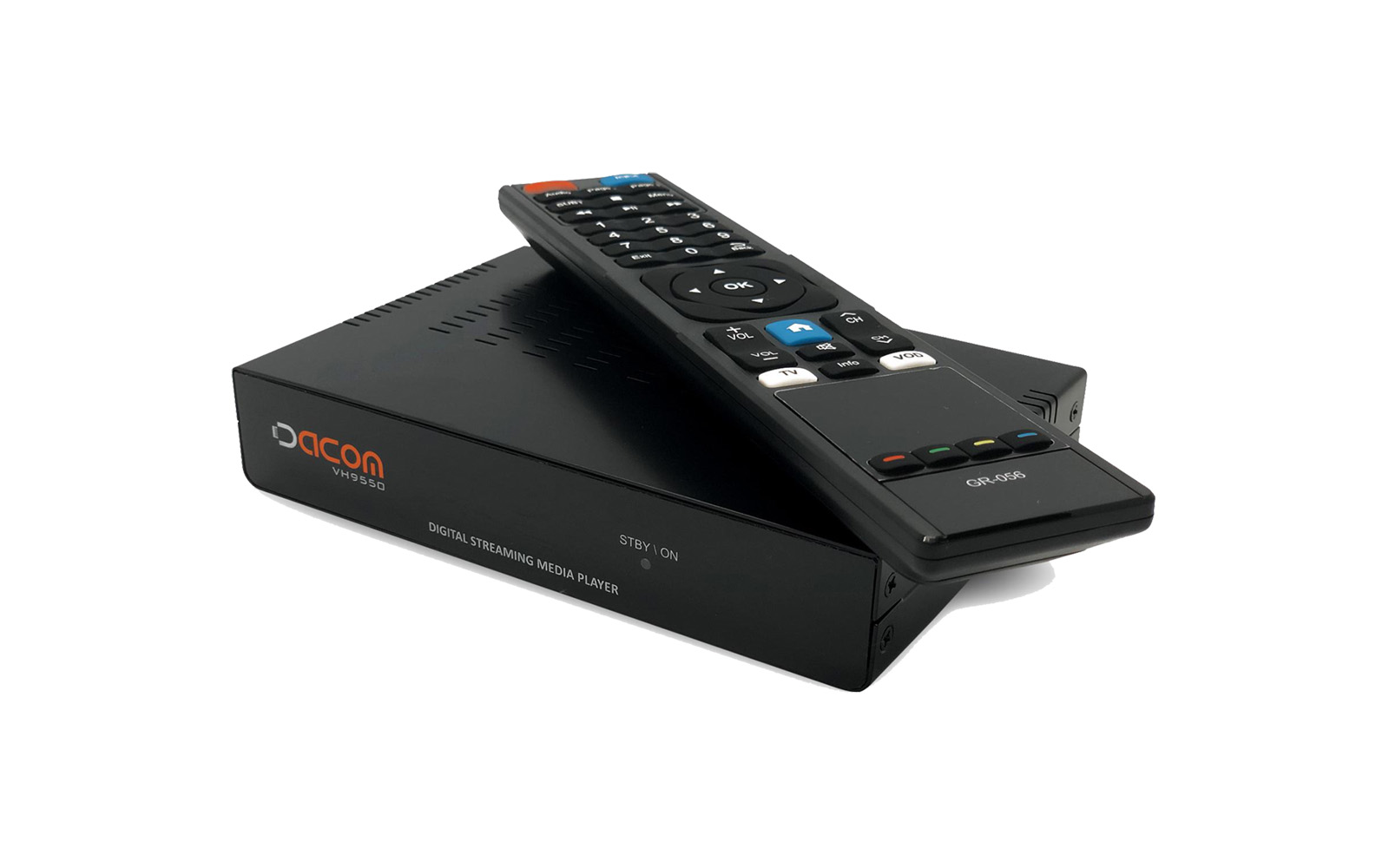

VH9550 – Digital HD Media Player

Categories: ,
Description

4K Digital HD Media Player

VH9550 4K Digital HD Media Player brings with full resolution 4K Ultra @ 60Hz. And it’s all about an Quad-core ARM Cortex-A53 64-bit processor.

Packed with a 2GB DDR3 RAM along with 8GB of eMMC flash storage, VH955- 4K HD Media Player extends of internal storage space for apps and all their media contents.

Specification

Specification

Hardware
☑ Quad-core 64-bit high performance ARM Cortex A53 with NEON.
☑ 2GB DDR3; 8GB eMMC Flash

Operating System S/W
☑ Android 7.0 running on 1080P60 UI resolution.

Video Decoding
☑ H.265/HEVC 10 bit maximum 4k x 2k @ 60fps.
☑ H.264/VC1/MPEG2/VP9/VP8

Power
☑ Input: AC 100~240V 50/60Hz
☑ Output:DC 12V-1.0A

Audio Decoding
☑ MPEG L1/L2
☑ AAC-LC and AAC V1/V2 decoding
☑ Support MP3, WMV, AAC, OGG, FLAC, APE

Wi-Fi Dongle
☑ IEEE 802, 11 b/g/n
☑ 2.4GHz 1T1R

IR Extender
☑ NEC 38KHz / cable 1M

Input
☑ Ethernet
RJ-45 Connector Speed 10/100/1000Mbps
☑ RF,F Type
DVB-T (ETS 300 744) / T2 (ETS 302 755)

Output
☑ CVBS/ Audio L/R
☑ HDMI 2.0A TX
Support HDCP 2.2/ 1.4

Interface
☑ USB 3.0
☑ Recovery button

Dimensions
☑ 172mm x 114mm x 32mm
