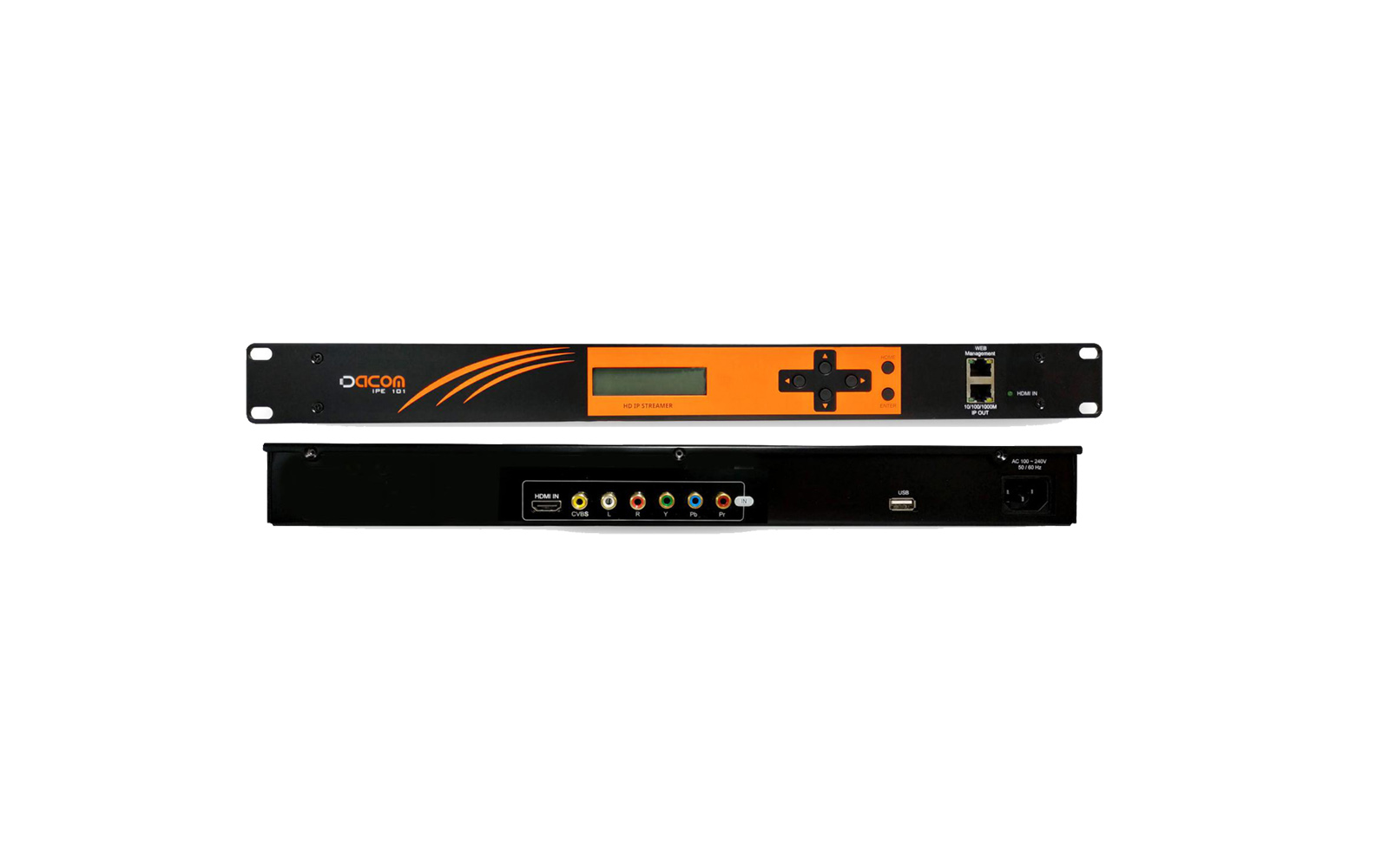

Dacom Single Channel IP Encoder – IPE101

Description

HDMI To IP Encoder

A professional Full HD IP Streamer with single HDMI input, it allow the user to stream any one audio/video source over a IP Network to Smart HDTV’s or set top box within the IP Network.

The IP Streamer accepts a HDMI, Components, or Composite video input and the unit is designed to deliver a rich HD/SD Streaming experience for it’s users deploying MPEG-2 or H.264 standards.

Specification

Specification

INPUT
☑ Input Interface
IPE 101
1 x HDMI
1 x YPbPr
1 x CVBS

☑ Input Resolution
HD 1080P 25/40, 1080i 50/60 Max;
YPbPr 1080i, 720P, 576i/P;
CVBS NTSC,PAL

OTHER
☑ USB Input
USB 2.0 update firmware

☑ Power Supply
AC 100~240V 50/60Hz

☑ Display
LCD panel @ 2×16 characters

☑ Dimension
225mm x 160mm x 45mm

☑ Environmental for Operating
Relative Humidity: 80% @ 30°C

OUTPUT
☑ Ethernet x 2
Port 1: Web Management
Port 2: IP Out, 10/100/1000M

☑ Streaming Protocols
DLNA, UDP / RTP, Multicasting & Unicasting

H.264 ENCODER
☑ Video Format
HD H.264 AVC / hp@l4.0; SD MPEG-2 / MP@ML

☑ Audio Format
MPEG-2 / ACC

☑ Resolution
HD 1080P25, 1080P30 Max; SD 480i, 576i

☑ Video Bit Rate
H.264 12Mbps MAX, MPEG-2 8 Mbps MAX

☑ Audio Bit Rate and Sample Rate
384Kbps / 48KHz

☑ Configurable Parameters
Service Name, Service ID, Video PID, Audio PID, PMT PID, PCR PID
