Analog Twin Channel VSB TV Modulator

Categories: ,
Description

Modulating analogue video/audio signals into VSB RF channel with mono or stereo A2 sound.



  • Frequency agile vestigial sideband TV  modulators
  • LED display and push buttons control of internal microprocessor
  • Non-volatile channel memory
  • PLL crystal stabilization of carriers frequency
  • Adjustable RF output level and audio input level
  • Loop through RF combining
  • low level harmonic and intermodulation products
  • Built-in test pattern generator
  • Die-cast housing



Connectors

  • Video / audio input – RCA sockets
  • RF – type F
  • Screw terminal block for DC entry
  • Power distribution bus

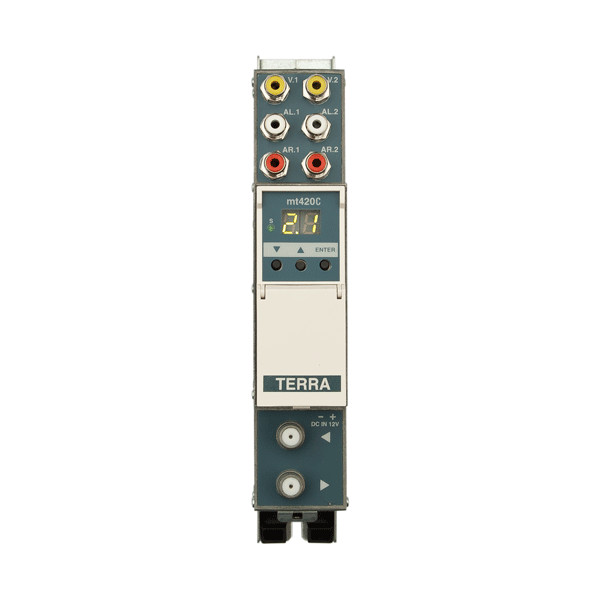

MT420C

  • Twin TV modulator
  • Standard B/G/D/K/Au stereo Au
