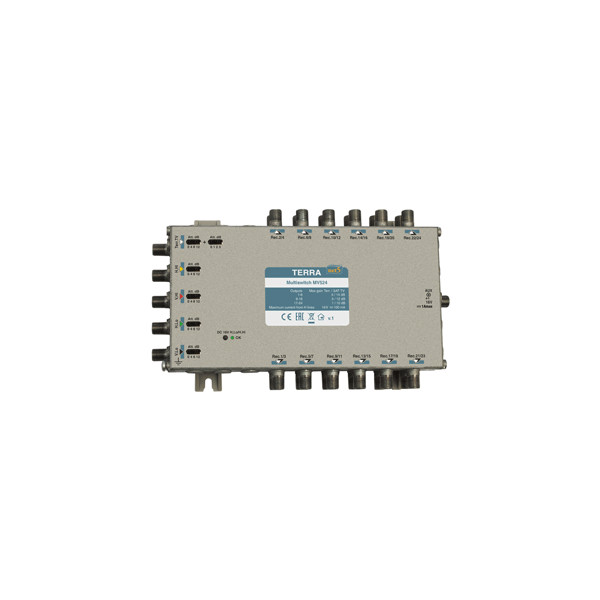

Terra 5 Cable Multiswitch – 5×24 outputs – MV524

Categories: ,
Description
  • For large installations of SAT IF distribution systems
  • In line powering through H lines
  • All components of 5 cable distribution system are compatible to each other
  • Length of the subscriber line up to 80 meters
  • Four positions discrete gain regulator for each SAT IF line and separate 16 positions discrete gain regulator for terrestrial TV
  • Optimized for operation with terrestrial digital/analog signals
  • Active terrestrial TV path powering from central power supply allows to receive terrestrial TV programs without switching on SAT TV receiver
  • LED indication of 18 V line powering
  • Possibility to feed LNBs and network equipment from external +18 V power supply unit recommended power supply -PS182F
  • Die-cast housing



MV524

5×24 multiswitch
